第十章 TF坐标变化工具

10.1 TF坐标变换工具

10.1.1 TF命令行

• 假设，一个轮式机器人的中心坐标为 (0, 0, 0) ，雷达的的坐标为 (0.1, 0, 0.2) ，雷达检测到障碍物在 (0.3, 0, 0)。
• 三个坐标分别用base_link、base_laser、wall_point代指。

在ROS2中，我们使用tf2（即第二代坐标变换工具）处理这些已知数据。

① 使用静态坐标变换发布base_link和base_laser之间的坐标关系。其中，--frame-id为父坐标系名称，-child-frame-id为子坐标系名称。

Bash

ros2 run tf2_ros static_transform_publisher --x 0.1 --y 0.0 --z 0.2 --roll 0.0 --pitch 0.0 --yaw 0.0 --frame-id base_link --child-frame-id base_laser

其中--roll 0.0 --pitch 0.0 --yaw 0.0是欧拉角，分别为横滚角、俯仰角、偏航角。而命令行返回的rotation有四个数，这里是使用四元数来表示的旋转姿态。其中ROS中使用四元数居多，且欧拉角具有万向锁等确定，但易于看出旋转变化，所以在图形化界面多采用欧拉角展示旋转姿态。

② 使用静态坐标变换发布base_laser和wall_point之间的坐标关系。

Bash

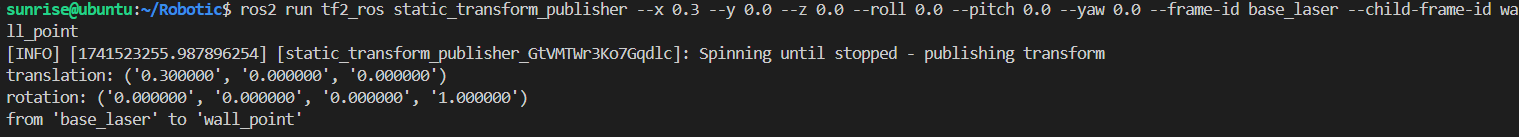

ros2 run tf2_ros static_transform_publisher --x 0.3 --y 0.0 --z 0.0 --roll 0.0 --pitch 0.0 --yaw 0.0 --frame-id base_laser --child-frame-id wall_point

③ 计算坐标系关系

Bash

ros2 run tf2_ros tf2_echo base_link wall_point

其中，Translation即为转换结果，相对于base_link而言，wall_point的坐标位置。其余四项数据均是表示旋转姿态，Quaternion为四元数，Matrix为旋转矩阵，其他两项为弧度、角度单位下的欧拉角。

10.1.2 mrpt工具

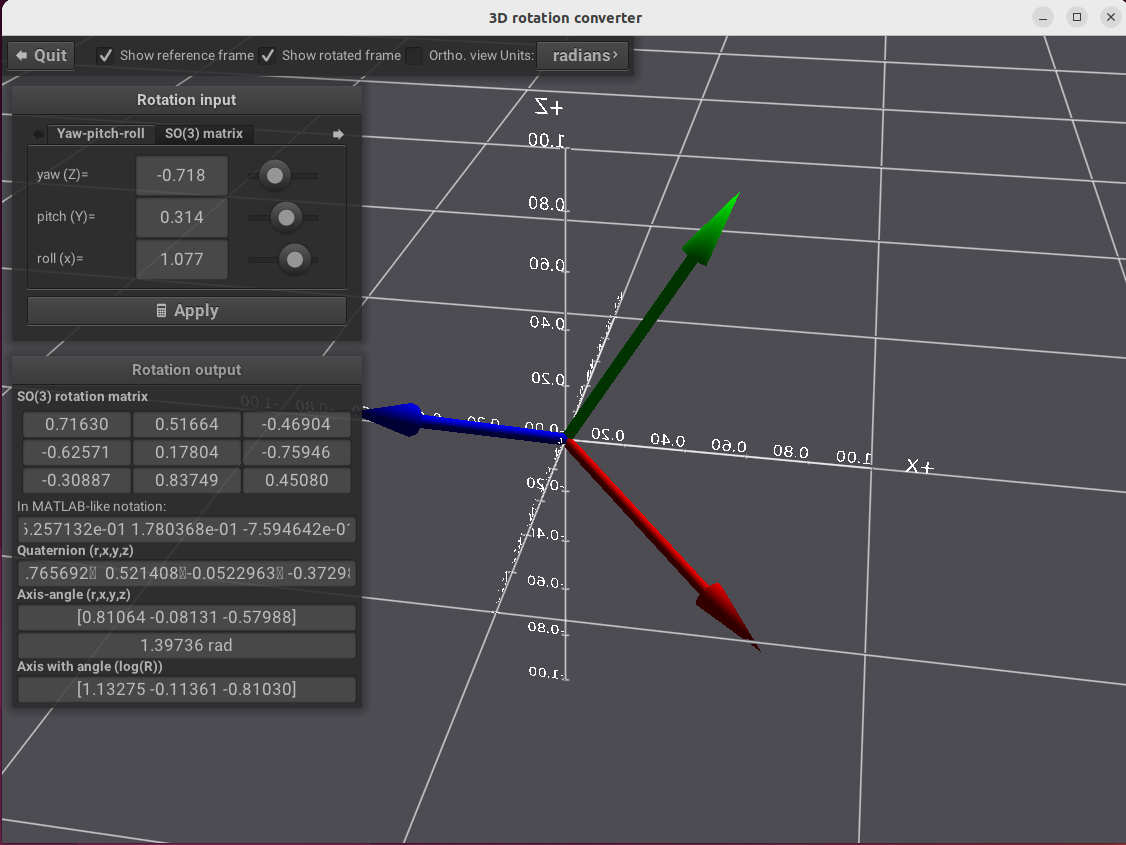

mrpt 工具可以可视化的看到四元数、欧拉角下的姿态变化。

安装mrpt

Bash

sudo apt install mrpt-apps

打开工具

Bash

3d-rotation-converter

10.1.3 TF消息接口

在发布完两个坐标变换后，可以在终端查看话题。

Bash

ros2 topic list

tf_static是一个静态坐标变换话题，可以用来发布静态设备的坐标。例如：雷达、相机等坐标固定的设备。

计算坐标系关系后，再次查看会多一个tf动态坐标变换话题，可以用来发布动态设备的坐标。例如：轮子这类坐标会实时变化的设备。

使用ros2 topic list -t可以查看话题的消息接口，然后查看静态坐标变换话题的消息接口的具体内容。

Bash

ros2 interface show tf2_msgs/msg/TFMessage

同时也可以使用命令行订阅话题获取坐标计算结果。

Bash

ros2 topic echo /tf_static

10.2 Python手眼坐标变换

10.2.1 案例需求

如图所示，机械臂位置base_link和相机位置camera_link固定不变，且图中有坐标关系和旋转角度。相机识别到bottle_link坐标，然后经过坐标变换让机械臂知道bottle_link与base_link的相对坐标关系，实现抓取工作。

10.2.2 功能包准备

安装需要的库，其中$ROS_DISTRO指当前环境的ROS版本，无需自己替换。

Bash

sudo apt install ros-$ROS_DISTRO-tf-transformations

创建python功能包，其中tf_transformations是一个python库用于欧拉角转四元数。

Bash

ros2 pkg create py_tf --build-type ament_python --dependencies rclpy geometry_msgs tf2_ros tf_transformations --license Apache-2.0

10.3 Python手眼坐标变换示例

10.3.1 发布静态坐标变换

功能包下新建static_tf_broadcaster.py

Python

import rclpy
from rclpy.node import Node
from tf2_ros import StaticTransformBroadcaster
from geometry_msgs.msg import TransformStamped
from tf_transformations import quaternion_from_euler
import math


class StaticTfBroadcaster(Node):
    def __init__(self, name):
        super().__init__(name)
        self.static_tf = StaticTransformBroadcaster(self)
        self.publish_static_tf()

    def publish_static_tf(self):
        """发布静态坐标变换"""
        transform = TransformStamped()
        # 消息头
        transform.header.stamp = self.get_clock().now().to_msg()
        transform.header.frame_id = 'base_link'
        # 子坐标名称
        transform.child_frame_id = 'camera_link'
        # 平面坐标关系
        transform.transform.translation.x = 0.5
        transform.transform.translation.y = 0.3
        transform.transform.translation.z = 0.6

        # 欧拉角(角度转弧度)转四元数
        q = quaternion_from_euler(math.radians(180), 0.0, 0.0)

        # 旋转坐标关系
        transform.transform.rotation.x = q[0]
        transform.transform.rotation.y = q[1]
        transform.transform.rotation.z = q[2]
        transform.transform.rotation.w = q[3]

        # 发布静态坐标变换
        self.static_tf.sendTransform(transform)
        self.get_logger().info(f"发布 TF:{transform}")

def main():
    rclpy.init()
    node = StaticTfBroadcaster("static_tf")
    rclpy.spin(node)
    rclpy.shutdown()

修改编译文件setpu.py

Python

entry_points={
    'console_scripts': [
        'static_tf_broadcaster = py_tf.static_tf_broadcaster:main',
    ],
},

编译

Bash

colcon build --packages-select py_tf
source install/setup.bash

10.3.2 发布动态坐标变换

功能包下新建dynamic_tf_broadcaster.py

Python

import rclpy
from rclpy.node import Node
from tf2_ros import TransformBroadcaster
from geometry_msgs.msg import TransformStamped
from tf_transformations import quaternion_from_euler
import math


class DynamicTfBroadcaster(Node):
    def __init__(self, name):
        super().__init__(name)
        self.dynamic_tf = TransformBroadcaster(self)
        self.timer = self.create_timer(0.1, self.publish_dynamic_tf)

    def publish_dynamic_tf(self):
        """发布静态坐标变换"""
        transform = TransformStamped()
        # 消息头
        transform.header.stamp = self.get_clock().now().to_msg()
        transform.header.frame_id = 'camera_link'
        # 子坐标名称
        transform.child_frame_id = 'bottle_link'
        # 平面坐标关系
        transform.transform.translation.x = 0.2
        transform.transform.translation.y = 0.3
        transform.transform.translation.z = 0.5

        # 欧拉角(角度转弧度)转四元数
        q = quaternion_from_euler(0, 0.0, 0.0)

        # 旋转坐标关系
        transform.transform.rotation.x = q[0]
        transform.transform.rotation.y = q[1]
        transform.transform.rotation.z = q[2]
        transform.transform.rotation.w = q[3]

        # 发布静态坐标变换
        self.dynamic_tf.sendTransform(transform)
        self.get_logger().info(f"发布 TF:{transform}")

def main():
    rclpy.init()
    node = DynamicTfBroadcaster("dynamic_tf")
    rclpy.spin(node)
    rclpy.shutdown()

修改编译文件setpu.py

Python

entry_points={
    'console_scripts': [
        'static_tf_broadcaster = py_tf.static_tf_broadcaster:main',
        'dynamic_tf_broadcaster = py_tf.dynamic_tf_broadcaster:main',
    ],
},

编译

Bash

colcon build --packages-select py_tf
source install/setup.bash

10.3.3 监听坐标变换

功能包下新建tf_listener.py

Python

import rclpy
from rclpy.node import Node
import rclpy.time
from tf2_ros import TransformListener, Buffer
from geometry_msgs.msg import TransformStamped
from tf_transformations import euler_from_quaternion


class TfListener(Node):
    def __init__(self, name):
        super().__init__(name)
        self.buffer = Buffer()
        self.tf_listener = TransformListener(node=self, buffer=self.buffer)
        self.timer = self.create_timer(1, self.get_transform)

    def get_transform(self):
        """获取坐标变换"""
        try:
            result = self.buffer.lookup_transform('base_link', 'bottle_link',
                # 获取transform的时间段，0代表获取最新的
                rclpy.time.Time(seconds=0.0),
                # 超时时间
                rclpy.time.Duration(seconds=1.0))
            # 解析结果
            transform = result.transform
            # 四元数转欧拉角
            euler = euler_from_quaternion([
                transform.rotation.x,
                transform.rotation.y,
                transform.rotation.z,
                transform.rotation.w,
            ])
            self.get_logger().info(f"平移:{transform.translation}\n旋转四元数:{transform.rotation}\n旋转欧拉角:{euler}")
        except Exception as e:
            self.get_logger().warn(f"不能够获取坐标变换，原因: {str(e)}")


def main():
    rclpy.init()
    node = TfListener("tf_listener")
    rclpy.spin(node)
    rclpy.shutdown()

修改编译文件setpu.py

Python

entry_points={
    'console_scripts': [
        'static_tf_broadcaster = py_tf.static_tf_broadcaster:main',
        'dynamic_tf_broadcaster = py_tf.dynamic_tf_broadcaster:main',
        'tf_listener = py_tf.tf_listener:main',
    ],
},

编译

Bash

colcon build --packages-select py_tf
source install/setup.bash

依次运行三个节点

10.4 Cpp地图坐标变换

10.4.1 案例需求

地图坐标系为map，机器人坐标系base_link，目标位置点为target_point。其中map为主坐标系，已知base_link、target_point和map的坐标关系，计算机器人到目标位置的坐标。

10.4.2 功能包准备

tf2_geometry_msgs涉及一些类型转换。

Bash

ros2 pkg create cpp_tf --build-type ament_cmake --dependencies rclcpp geometry_msgs tf2_ros tf2_geometry_msgs --license Apache-2.0

10.5 Cpp地图坐标变换示例

10.5.1 发布静态坐标变换

功能包下新建static_tf_broadcaster.cpp

C++

#include "rclcpp/rclcpp.hpp"
#include "geometry_msgs/msg/transform_stamped.hpp"
#include "tf2_ros/static_transform_broadcaster.h"
#include "tf2/LinearMath/Quaternion.hpp"

using StaticTransformBroadcaster = tf2_ros::StaticTransformBroadcaster;
using TransformStamped = geometry_msgs::msg::TransformStamped;

class StaticTfBroadcaster : public rclcpp::Node
{
public:
    StaticTfBroadcaster(std::string name) : Node(name)
    {
        static_tf_ = std::make_shared<StaticTransformBroadcaster>(this);
        this->publish_static_tf();
    }

private:
    void publish_static_tf(void)
    {
        TransformStamped transform;
        // 时间戳
        transform.header.stamp = this->get_clock()->now();
        // 父坐标系名称
        transform.header.frame_id = "map";
        // 子坐标系名称
        transform.child_frame_id = "target_point";
        // 平面移动
        transform.transform.translation.x = 5.0;
        transform.transform.translation.y = 3.0;
        transform.transform.translation.z = 0.0;
        // 欧拉角(弧度)转四元数
        tf2::Quaternion quat;
        quat.setRPY(0.0, 0.0, 60 * M_PI / 180);
        // 旋转
        transform.transform.rotation.x = quat[0];
        transform.transform.rotation.y = quat[1];
        transform.transform.rotation.z = quat[2];
        transform.transform.rotation.w = quat[3];
        // 发布
        static_tf_->sendTransform(transform);
        RCLCPP_INFO(this->get_logger(), "Static_Transform发送成功");
    }

private:
    std::shared_ptr<StaticTransformBroadcaster> static_tf_;
};

int main(int argc, char* argv[])
{
    rclcpp::init(argc, argv);
    auto node = std::make_shared<StaticTfBroadcaster>("static_tf");
    rclcpp::spin(node);
    rclcpp::shutdown();
}

配置CmakeLists.txt文件

CMake

# 添加可执行文件
add_executable(static_tf src/static_tf_boradcaster.cpp)
# 添加目标依赖
ament_target_dependencies(
  static_tf
  "rclcpp"
  "geometry_msgs"
  "tf2_ros"
)
install(TARGETS
  static_tf
  DESTINATION lib/${PROJECT_NAME}
)

编译

Bash

colcon build --packages-select cpp_tf
source install/setup.bash

10.5.2 发布动态坐标变换

功能包下新建dynamic_tf_broadcaster.cpp

C++

#include "rclcpp/rclcpp.hpp"
#include "geometry_msgs/msg/transform_stamped.hpp"
#include "tf2_ros/transform_broadcaster.h"
#include "tf2/LinearMath/Quaternion.hpp"


using namespace std::chrono_literals;
using TransformBroadcaster = tf2_ros::TransformBroadcaster;
using TransformStamped = geometry_msgs::msg::TransformStamped;

class DynamicTfBroadcaster : public rclcpp::Node
{
public:
DynamicTfBroadcaster(std::string name) : Node(name)
    {
        dynamic_tf_ = std::make_shared<TransformBroadcaster>(this);
        timer_ = this->create_wall_timer(1s, std::bind(&DynamicTfBroadcaster::publish_dynamic_tf, this));
    }

private:
    void publish_dynamic_tf(void)
    {
        TransformStamped transform;
        // 时间戳
        transform.header.stamp = this->get_clock()->now();
        // 父坐标系名称
        transform.header.frame_id = "map";
        // 子坐标系名称
        transform.child_frame_id = "base_link";
        // 平面移动
        transform.transform.translation.x = 2.0;
        transform.transform.translation.y = 3.0;
        transform.transform.translation.z = 0.0;
        // 欧拉角(弧度)转四元数
        tf2::Quaternion quat;
        quat.setRPY(0.0, 0.0, 30 * M_PI / 180);
        // 旋转
        transform.transform.rotation.x = quat[0];
        transform.transform.rotation.y = quat[1];
        transform.transform.rotation.z = quat[2];
        transform.transform.rotation.w = quat[3];
        // 发布
        dynamic_tf_->sendTransform(transform);
        RCLCPP_INFO(this->get_logger(), "Static_Transform发送成功");
    }

private:
    std::shared_ptr<TransformBroadcaster> dynamic_tf_;
    rclcpp::TimerBase::SharedPtr timer_;
};

int main(int argc, char* argv[])
{
    rclcpp::init(argc, argv);
    auto node = std::make_shared<DynamicTfBroadcaster>("dyanmic_tf");
    rclcpp::spin(node);
    rclcpp::shutdown();
}

配置CmakeLists.txt文件

CMake

# 添加可执行文件
add_executable(dynamic_tf src/dynamic_tf_boradcaster.cpp)

# 添加目标依赖
ament_target_dependencies(
  dynamic_tf
  "rclcpp"
  "geometry_msgs"
  "tf2_ros"
)

install(TARGETS
  static_tf
  dynamic_tf
  DESTINATION lib/${PROJECT_NAME}
)

编译

Bash

colcon build --packages-select cpp_tf
source install/setup.bash

10.5.3 监听坐标变换

功能包下新建tf_listener.cpp

C++

#include "rclcpp/rclcpp.hpp"
#include "geometry_msgs/msg/transform_stamped.hpp"
#include "tf2_ros/transform_listener.h"
#include "tf2_ros/buffer.h"
#include "tf2/LinearMath/Quaternion.hpp"
#include "tf2/utils.h"                  // 提供 tf2::getEulerYPR 函数
#include "tf2_geometry_msgs/tf2_geometry_msgs.hpp"

using namespace std::chrono_literals;
using TransformListener = tf2_ros::TransformListener;
using TransformStamped = geometry_msgs::msg::TransformStamped;

class DynamicTfBroadcaster : public rclcpp::Node
{
public:
DynamicTfBroadcaster(std::string name) : Node(name)
    {
        buffer_  = std::make_unique<tf2_ros::Buffer>(this->get_clock());
        tf_listener_ = std::make_shared<TransformListener>(*buffer_, this);
        timer_ = this->create_wall_timer(1s, std::bind(&DynamicTfBroadcaster::get_transform, this));
    }

private:
    void get_transform(void)
    {
        try {
            auto result = buffer_->lookupTransform("base_link", "target_point",
                rclcpp::Time(0.0f), rclcpp::Duration::from_seconds(1.0f));

            RCLCPP_INFO(this->get_logger(), "平移 %f %f %f", \
                result.transform.translation.x,
                result.transform.translation.y,
                result.transform.translation.z
            );
            RCLCPP_INFO(this->get_logger(), "旋转(四元数) %f %f %f %f", \
                result.transform.rotation.x,
                result.transform.rotation.y,
                result.transform.rotation.z,
                result.transform.rotation.w
            );
            double roll, pitch, yaw;
            const auto &q = result.transform.rotation;
            tf2::getEulerYPR(q, yaw, pitch, roll);
            RCLCPP_INFO(this->get_logger(), "旋转(欧拉角) %f %f %f", \
                roll,
                pitch,
                yaw
            );
        } catch(tf2::TransformException &e) {
            RCLCPP_WARN(this->get_logger(), "异常: %s", e.what());
        }

    }

private:
    std::shared_ptr<TransformListener> tf_listener_;
    rclcpp::TimerBase::SharedPtr timer_;
    std::unique_ptr<tf2_ros::Buffer> buffer_;
};

int main(int argc, char* argv[])
{
    rclcpp::init(argc, argv);
    auto node = std::make_shared<DynamicTfBroadcaster>("tf_listener");
    rclcpp::spin(node);
    rclcpp::shutdown();
}

配置CmakeLists.txt文件

CMake

# 添加可执行文件
add_executable(tf_listener src/tf_listener.cpp)

# 添加目标依赖
ament_target_dependencies(
  tf_listener
  "rclcpp"
  "geometry_msgs"
  "tf2_ros"
  tf2_geometry_msgs
)

install(TARGETS
  static_tf
  dynamic_tf
  tf_listener
  DESTINATION lib/${PROJECT_NAME}
)

编译

Bash

colcon build --packages-select cpp_tf
source install/setup.bash

依次运行三个节点即可得到转换结果。
